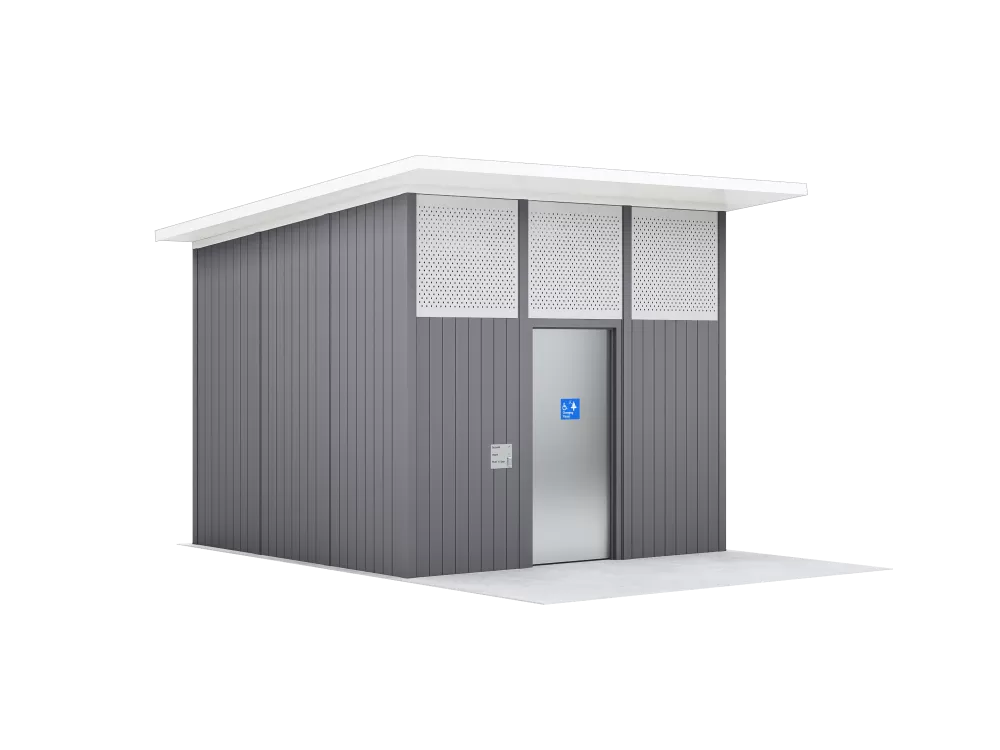

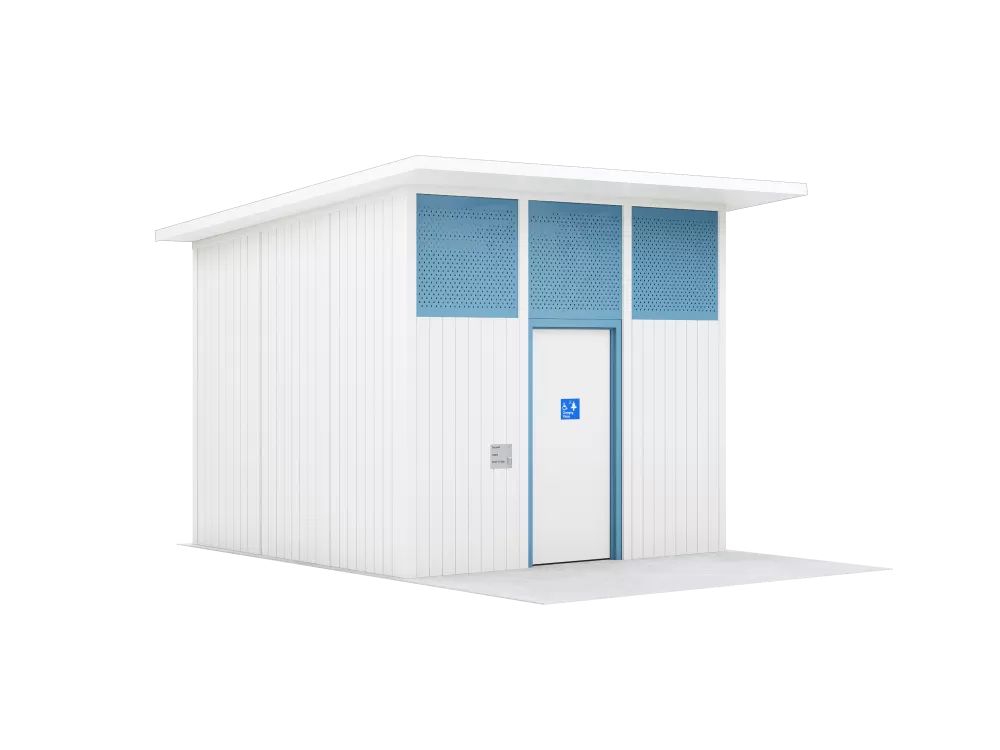

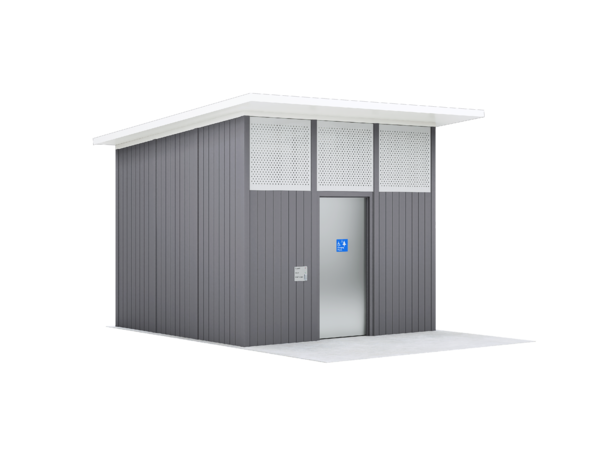

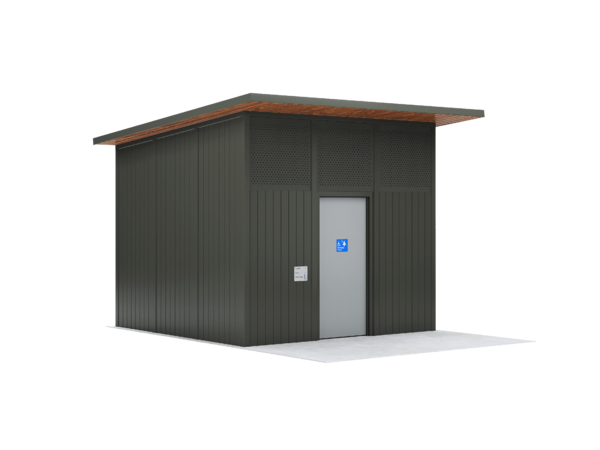

Changing Places Toilet 1B
Changing Place Restrooms include essential floorspace for two carers access to hoists and automated adult change table to assist care for people with disability and high support needs.
Applications
Specification
-
Wall Framing
Fully welded robust steel SHS, hot dip galvanized after fabrication
-
Proprietary Prefab Wall Panel System
Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction
-
External Wall Cladding
- Colorbond Custom Orb (standard)
- Alum Extruded Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
- Vinyl Graphics
-
Internal Wall Cladding
Miniorb - vandal resistant and easy maintenance
-
Roof
Colorbond Custom Orb
-
Door
Solid core, Colorbond clad
-
Door Hardware
Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles
-
Door Signage
Tactile Braille blue/white
-
Fixings
Class 3 roof fixings, stainless steel structural fixings
-
Structural Engineering
Engineered for your site, including Region D cyclonic locations
-
Exposed Steel
Hot dip galvanised and powder-coated
-
Standard Fixtures
Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder
-
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions
Changing Place Restrooms include essential floorspace for two carers access to hoists and automated adult change table to assist care for people with disability and high support needs.
Applications
Specification
-
Wall Framing
Fully welded robust steel SHS, hot dip galvanized after fabrication -
Proprietary Prefab Wall Panel System
Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction -
External Wall Cladding
- Colorbond Custom Orb (standard)
- Alum Extruded Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
- Vinyl Graphics
-
Internal Wall Cladding
Miniorb - vandal resistant and easy maintenance -
Roof
Colorbond Custom Orb -
Door
Solid core, Colorbond clad -
Door Hardware
Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles -
Door Signage
Tactile Braille blue/white -
Fixings
Class 3 roof fixings, stainless steel structural fixings -
Structural Engineering
Engineered for your site, including Region D cyclonic locations -
Exposed Steel
Hot dip galvanised and powder-coated -
Standard Fixtures
Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder -
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions

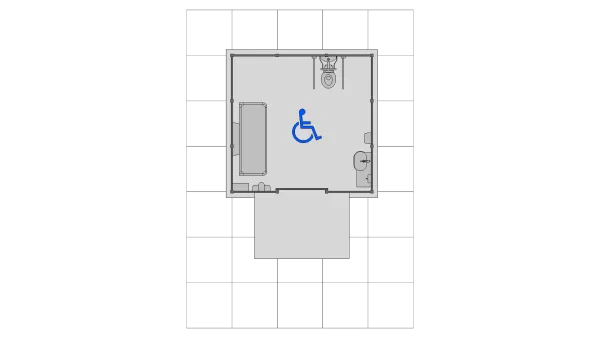

Changing Places Toilet Option 1B Floorplan
- 3700mm x 3600mm
- Prefabricated Kit-Form Building
- 1 Changing Place Restroom Facility

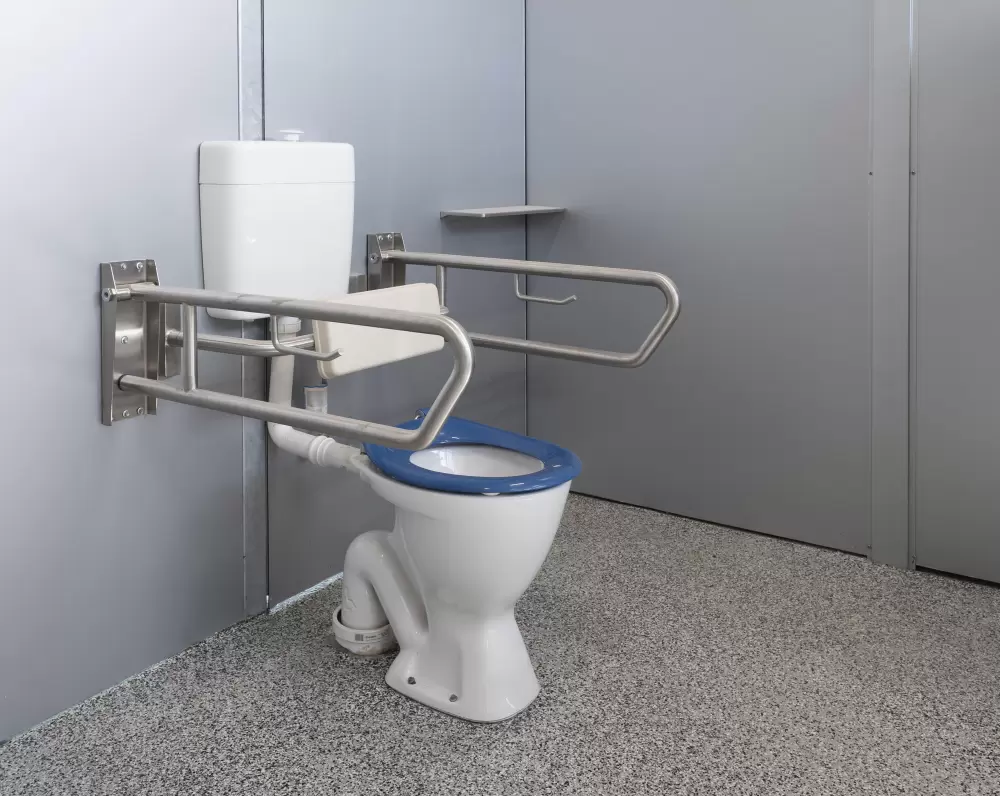

- 1 toilet including back rest, grab rails

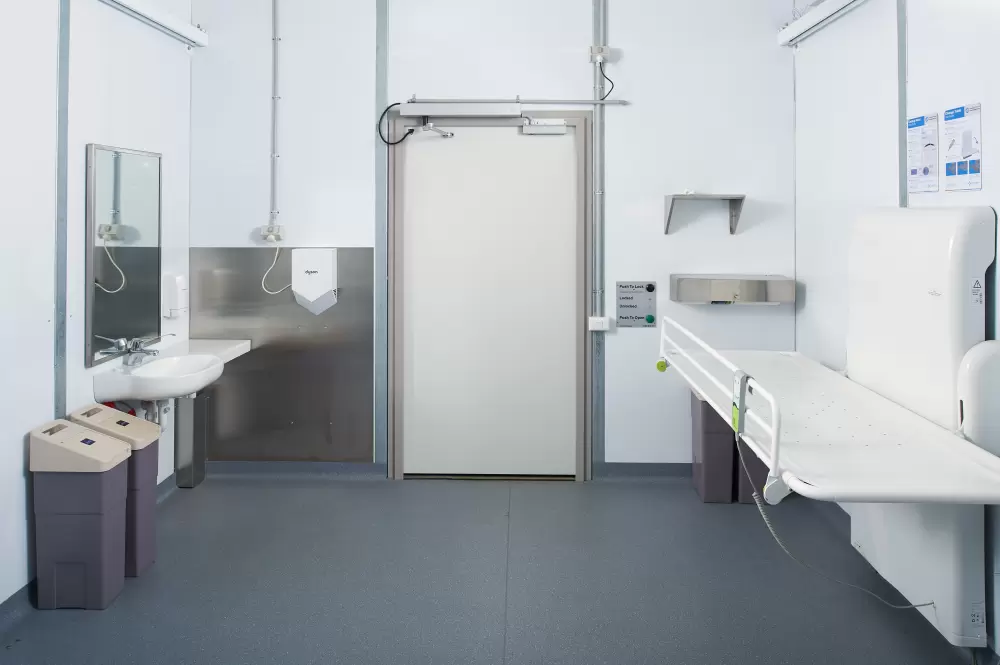

- 1 Adjustable height change table with disposable cover

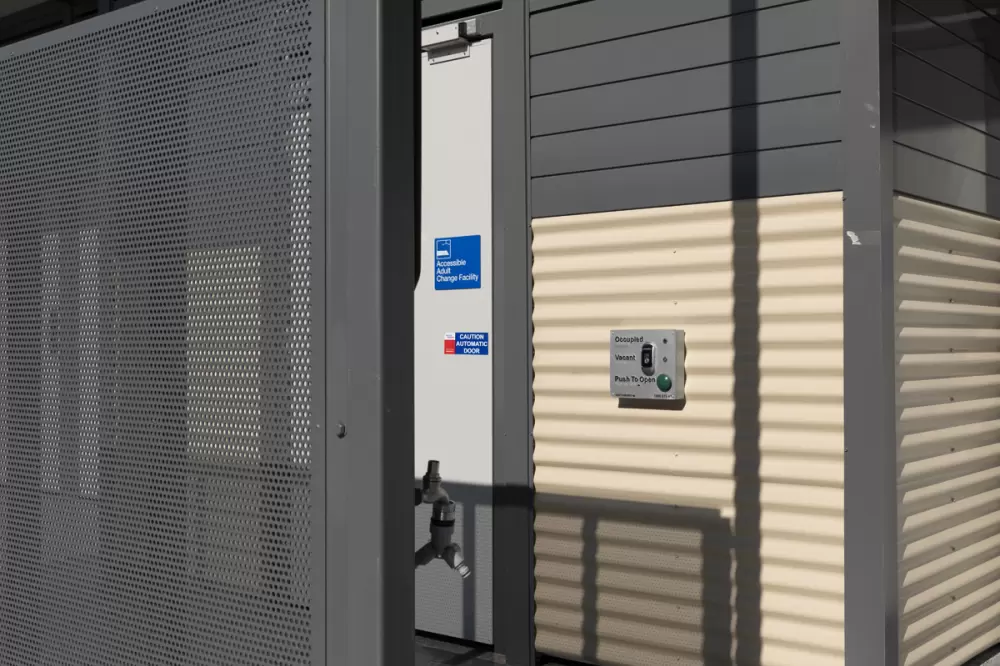

- Automatic door with secure entry
