Floorplans

Toilet building plan drawings

Filter by

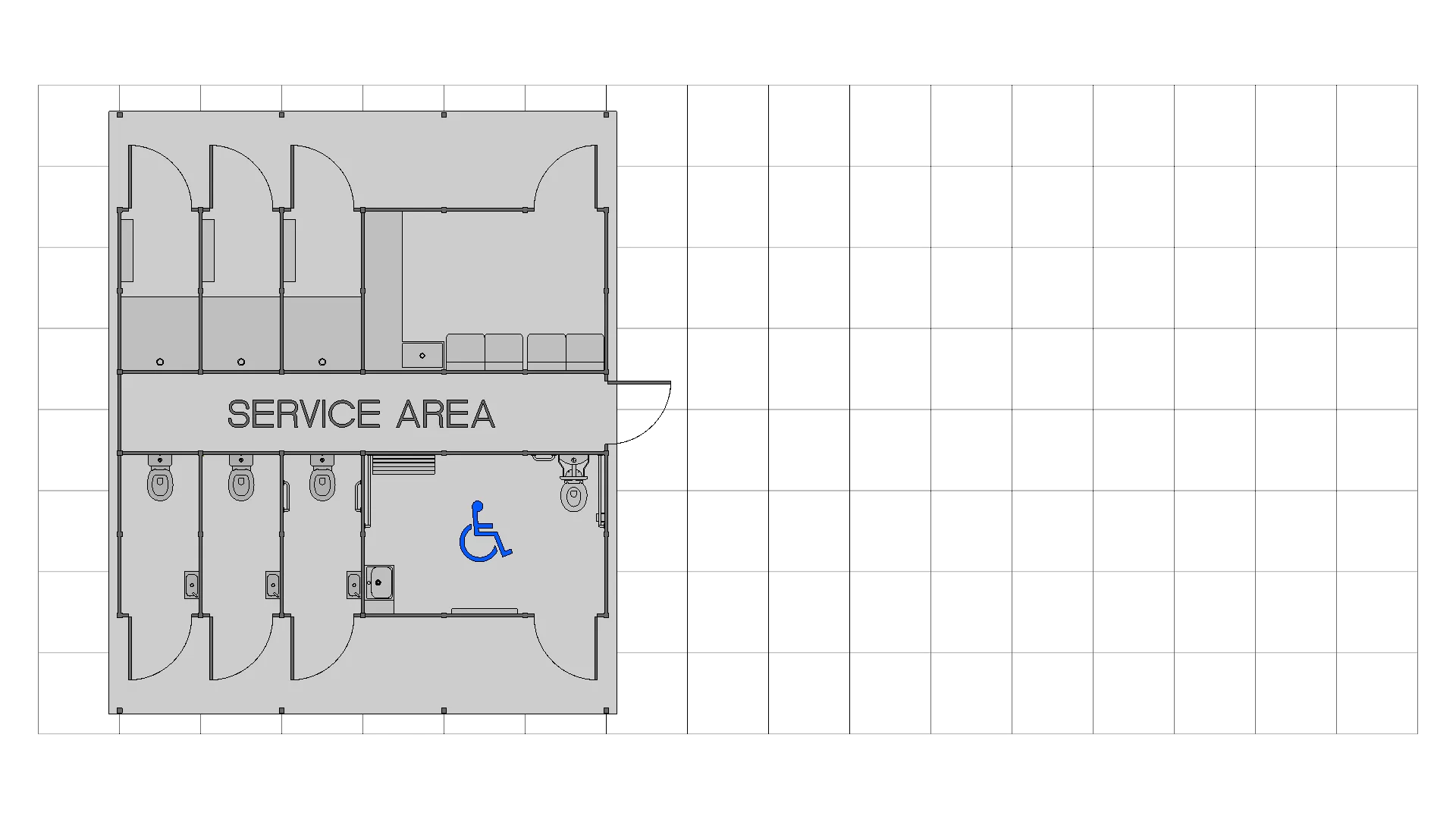

Standard Shelter Multi Changing Places

Multi

Floorplans

Select Floorplan

1 Standard Toilets
2 Ambulant Toilet
1 Universal Access Toilet & Shower
3 Shower Modules
1 Laundry
1 Service Area
7200mm x 6000mm

Select Floorplan

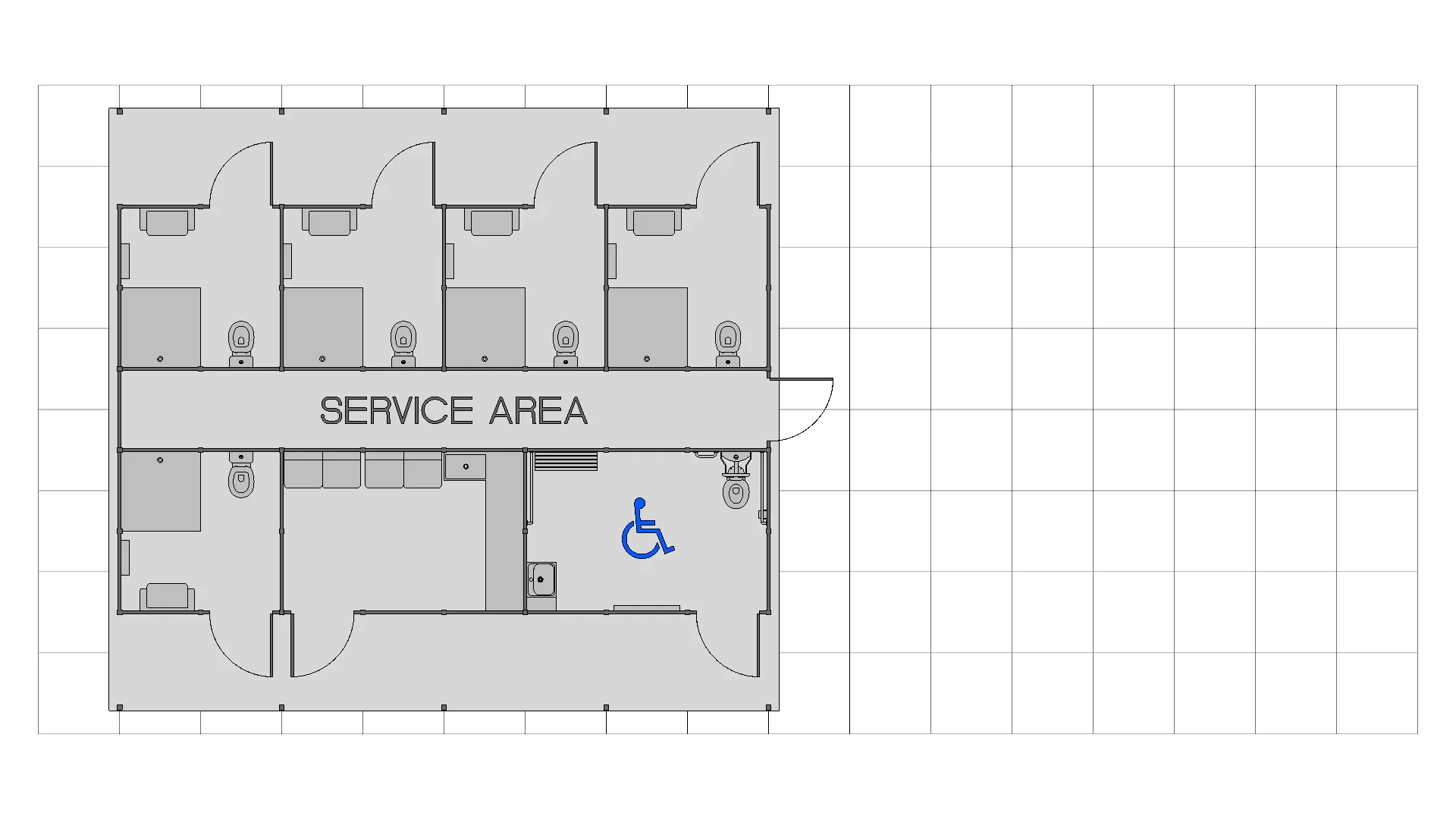

Tourist Village

Floorplans

Select Floorplan

5 Standard Toilet & Shower Modules
1 Universal Access Toilet & Shower
1 Laundry
1 Service Area
9600mm x 6000mm

Select Floorplan

Whitehaven Medium

Floorplans

Select Floorplan

2 Standard Toilet
2 Ambulant Toilet
1 Universal Access Toilet & Shower
2 Showers
1 Multiple Urinal
2 Changing Areas
1 Service Area
12000mm x 6000mm

Select Floorplan

Whitehaven Large

Floorplans

Select Floorplan

4 Standard Toilet
2 Ambulant Toilet
1 Universal Access Toilet & Shower
4 Showers
1 Multiple Urinal
2 Service Area,
2 Changing Areas
1 Storeroom
18000mm x 6000mm

Select Floorplan

Multi Custom

Floorplans

Select Floorplan

INTERNAL FIXTURES & LAYOUT

Available in all Multi floorplans
Number of toilets and/or showers
Service Area and/or Storeroom
Laundry, Kitchen and/or Changeroom
Ask about other options available

Select Floorplan
