Byron Multi

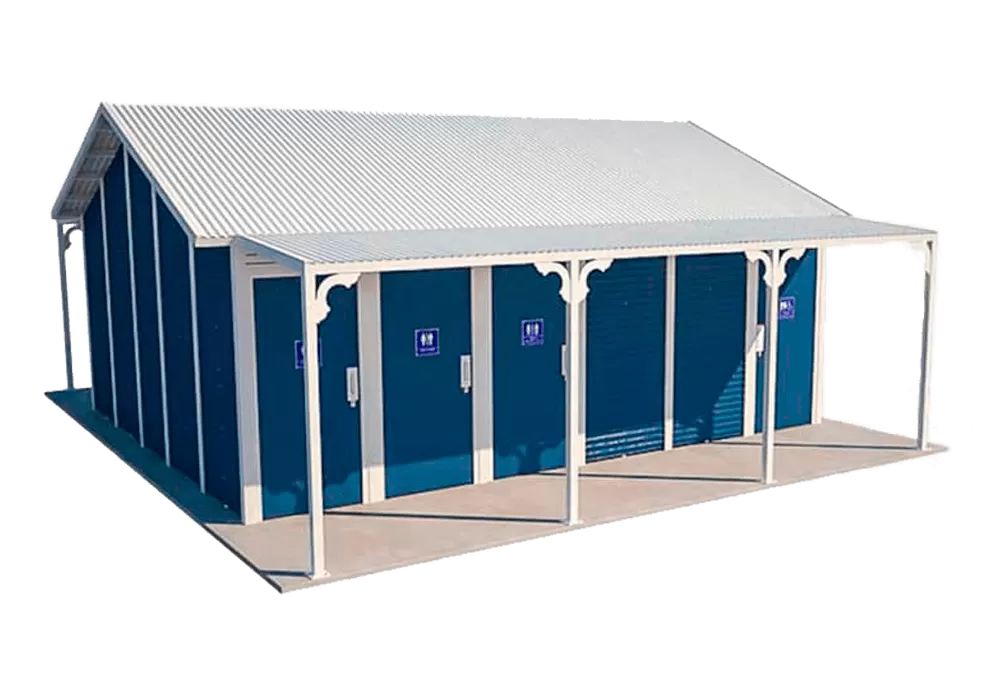

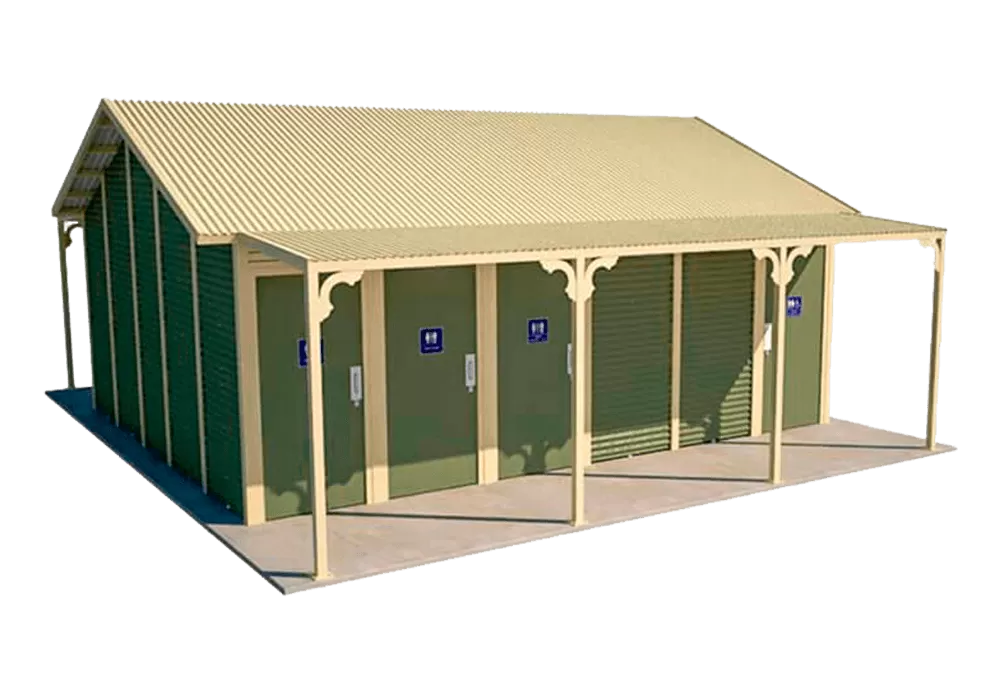

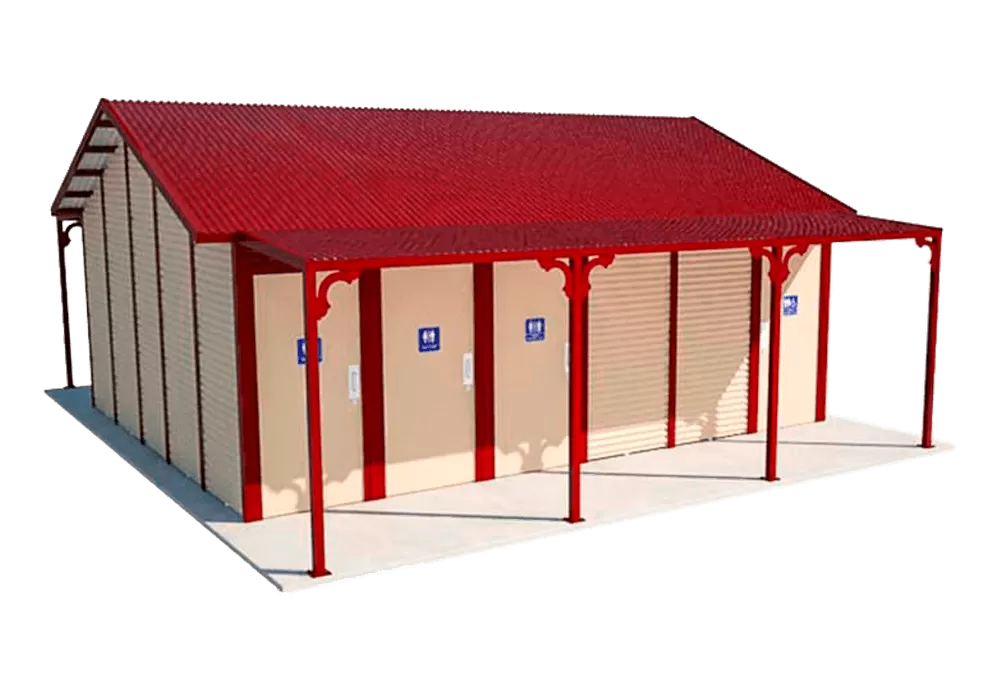

Byron public toilet building delivers classic form with a gable roof and trimming, designed to fit well in traditional surroundings. This toilet building design has been very popular, due its traditional looks integrating well with the architecture in many regions around Australia.
Applications
Specification
-
Wall Framing
Fully welded robust steel SHS, hot dip galvanized after fabrication -
Proprietary Prefab Wall Panel System
Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction -
External Wall Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding (standard)
- Colorbond Custom Orb
- Alum Extruded Cladding
-
Internal Wall Cladding
Miniorb - vandal resistant and easy maintenance -
Roof
Colorbond Custom Orb -
Door
Solid core, Colorbond clad -
Door Hardware
Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles -
Door Signage
Tactile Braille blue/white -
Fixings
Class 3 roof fixings, stainless steel structural fixings -
Structural Engineering
Engineered for your site, including Region D cyclonic locations -
Exposed Steel
Hot dip galvanised and powder-coated -
Standard Fixtures
Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder -
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions
Multi Floorplan
- 2 Standard Toilets
- 2 Ambulant Toilet
- 1 Universal Access Toilet & Shower
- 3 Shower Modules
- 1 Laundry
- 1 Service Area
- 7200mm x 6000mm
