Noosa Tourist Village

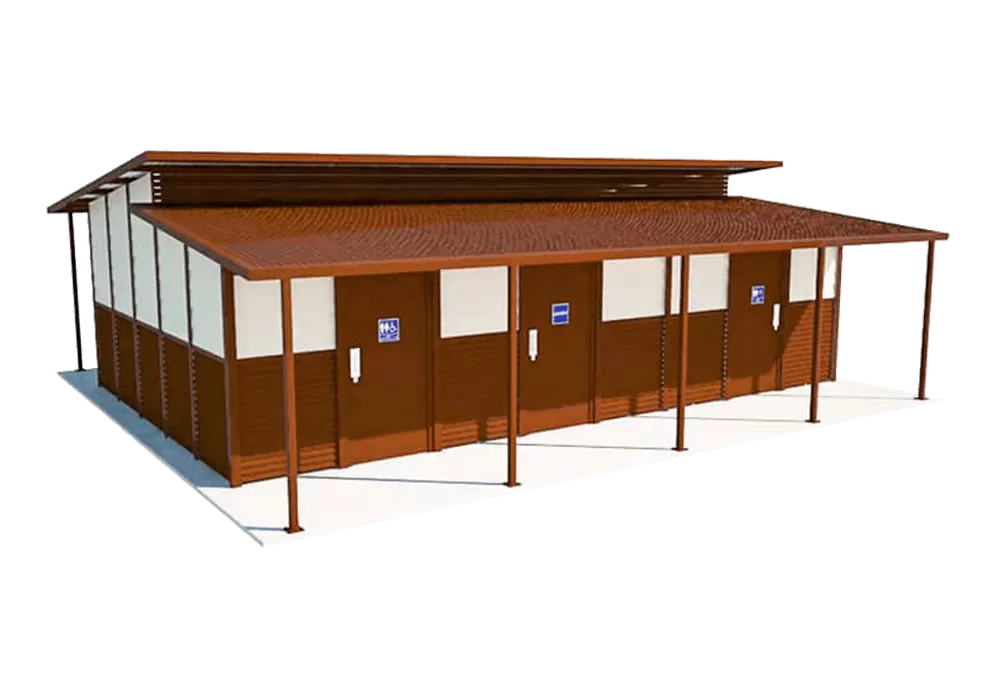

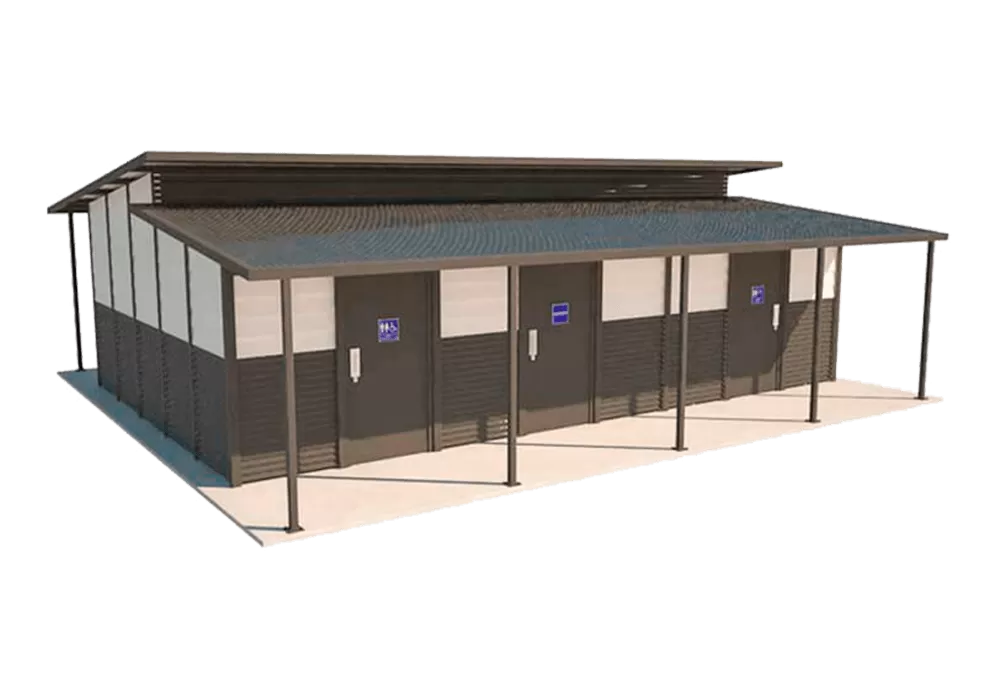

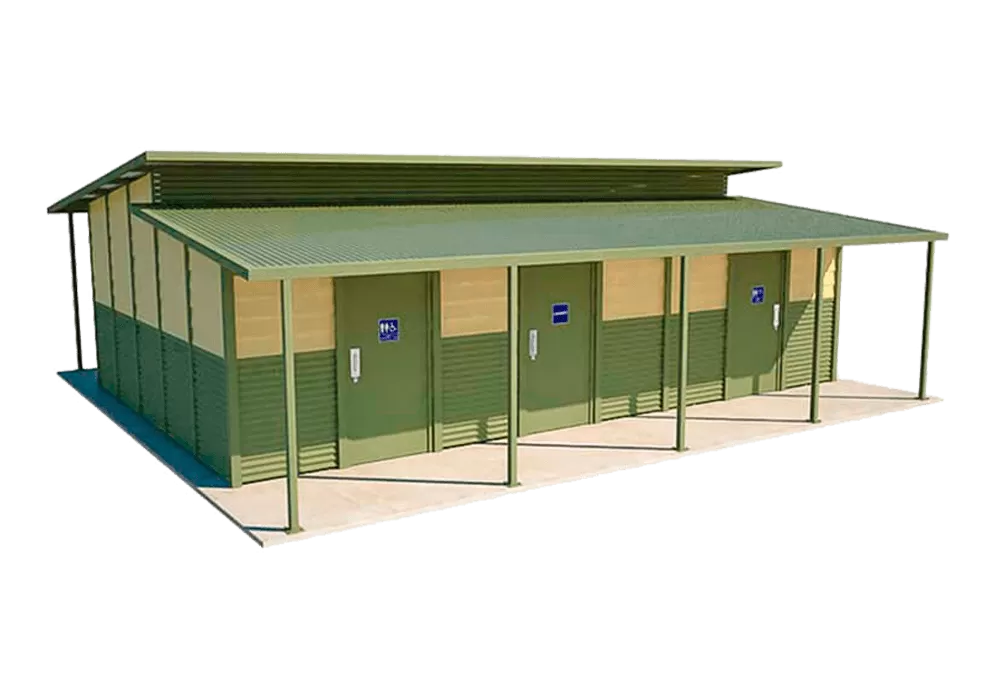

Noosa has a versatile design which integrates seamlessly into any environment. The Noosa Toilet Building distinguishes itself with distinctive opposing skillion style roof shapes. The roof design provides a great catchment area for rainwater, and is recommended for use with water tanks to capture this valuable resource.
Applications
Specification
-
Wall Framing
Fully welded robust steel SHS, hot dip galvanized after fabrication -
Proprietary Prefab Wall Panel System
Pre-clad panels, inside and out. Doors pre-hung in frames. Prefab for simple, fast and accurate bolt together onsite construction -
External Wall Cladding
- Colorbond Custom Orb (standard)
- Alum Extruded Cladding
- 1/2 Colorbond Custom Orb, 1/2 Alum Extruded Cladding
- Vinyl Graphics
-
Internal Wall Cladding
Miniorb - vandal resistant and easy maintenance -
Roof
Colorbond Custom Orb -
Door
Solid core, Colorbond clad -
Door Hardware
Heavy duty marine grade stainless steel, indicator bolts, door closers, internal and external pull handles -
Door Signage
Tactile Braille blue/white -
Fixings
Class 3 roof fixings, stainless steel structural fixings -
Structural Engineering
Engineered for your site, including Region D cyclonic locations -
Exposed Steel
Hot dip galvanised and powder-coated -
Standard Fixtures
Toilet suites, S/S Basin, S/S Grab Rails, S/S Toilet Roll Holder - others dependant upon selected floorplan -
Optional Extras
- Solar lighting
- Auto-timed door locking
- Verandah screens
- Additional internal fixtures
- Off-grid solutions
Tourist Village Floorplan
- 5 Standard Toilet & Shower Modules
- 1 Universal Access Toilet & Shower
- 1 Laundry
- 1 Service Area
- 9600mm x 6000mm
